Anyone intrested in 5.4L swaps, in here. Need you to opine.
Modular 4.6L TechFor all your 1996-2005+ 2V, 3V, and 4V modular motor needs.
User Login
Welcome to the Mustang Forums.
If this is your first visit, be sure to check out the FAQ by clicking the link above.
You may have to register before you can post: click the register link above to proceed.
To start viewing messages, select the forum that you want to visit from the selection below.
I'm not the least bit frustrated. The methanol kit is installed and works fine in the testing I've done. I have a couple little odds and ends to do but nothing big or even remotely hard. What I see is an opportunity to retire earlier than I've been projecting and still be able to get another faster mustang. The L swap wasn't really hard it just had a lot of cost to do the way it looked in my head.
I really love the beast but there are other beasts to be had.
BTW... I needed the methanol kit working before driving the car to the tuner in order to not blow the engine into little tiny shards as soon as it went into boost. It's got high compression and a relatively stock chamber and 91 octane is total weak sauce.
__________________
Built 5.5L 2v and Maximum Motorsports Max Grip box. www.squarerootofone.com
BTW, existing swap thread contributors can get it for a significant discount. You'll have to PM me if seriously interested to get the special discount (the special deal includes all the extras from deal #2 in my sale thread, just for a lot less)
__________________
Built 5.5L 2v and Maximum Motorsports Max Grip box. www.squarerootofone.com
Well I have been in and out of this thread/forum checking out info on the 5.4L swap, I thought I should post up what I've been doing with a buddie's car.
My friend has an 01 GT, we picked up a 5.4L long block out of a truck that caught fire. Short block was re-built, .020 over, forged pistons, scat rods, stock crank. Set up for a little lower compression (he wants boost later), about 9:1. He picked up an HPS intake from someone on this site (the "whore" intake I believe). Lightly ported stock PI heads, stock valves, Comp 278ah's (degreed to 110).
Plus all the reg bolt-ons, TB, plenum, headers, x pipe, cat-back ,etc.
Got it fired last night, stock computer did not like this set-up, thats for sure. But we swapped some 39 lb. Cobra injectors in and towed it to the dyno/tuner. After some tuning, we finally started putting numbers down, a little lower then expected, but not too bad.
310 HP wheel, 335 ft/lbs. wheel. Very flat torque curve, has over 300 torque between 3500 or so and close to 6K. Peak power hits about 5800 rpm or so, and stays about 300 HP until the rev limiter at 6500.
We'll probably go back after the engine has some miles on it.
stalker: those are good numbers. add some longtubes and you should land at around 330rwhp which is the current record for a 5.4 on PI heads.
For the record: Desktop dyno predicted those numbers with those mods, down to the 1 degree of retard on the cam stretching the power band out to 6100. Good work man.
__________________
Built 5.5L 2v and Maximum Motorsports Max Grip box. www.squarerootofone.com
Yeah I swear any shop or "mod motor" guy we talked to gave us shit about degree'ing the cams, but I'm glad we did it. I was hoping he would take the plunge and get some TFS heads for it, but he said for a little bit more he could have the blower and make more.... I myself love n/a cars, but whatever, lol
I finally got around to taking a few pics of the dyno data. Figured I'd post it here if anyone was curious. I wonder what it could run in the 1/4 with some slicks.
__________________
"horsepower sells cars but torque wins races"
I finally got around to taking a few pics of the dyno data. Figured I'd post it here if anyone was curious. I wonder what it could run in the 1/4 with some slicks.
Been thinking about selling my lightning shit now and i have yet to get it fired up i have 100 things going on with this car at once it seems and am now tossing around the idea of putting a carb on it
But then ill never have the power i have now unless i hit it with some juice
I'm not the least bit frustrated. The methanol kit is installed and works fine in the testing I've done. I have a couple little odds and ends to do but nothing big or even remotely hard. What I see is an opportunity to retire earlier than I've been projecting and still be able to get another faster mustang. The L swap wasn't really hard it just had a lot of cost to do the way it looked in my head.
I really love the beast but there are other beasts to be had.
BTW... I needed the methanol kit working before driving the car to the tuner in order to not blow the engine into little tiny shards as soon as it went into boost. It's got high compression and a relatively stock chamber and 91 octane is total weak sauce.
Never said that. Assumptive a tad bit maybe but dumbass... naw. I know some real dumbasses... you couldn't even train to be as dumb as them. Shit you spell dumbass with a b. You can't has dumbassness with correct spelling of words with silent letters.
Quote:
Originally Posted by myillwillinc

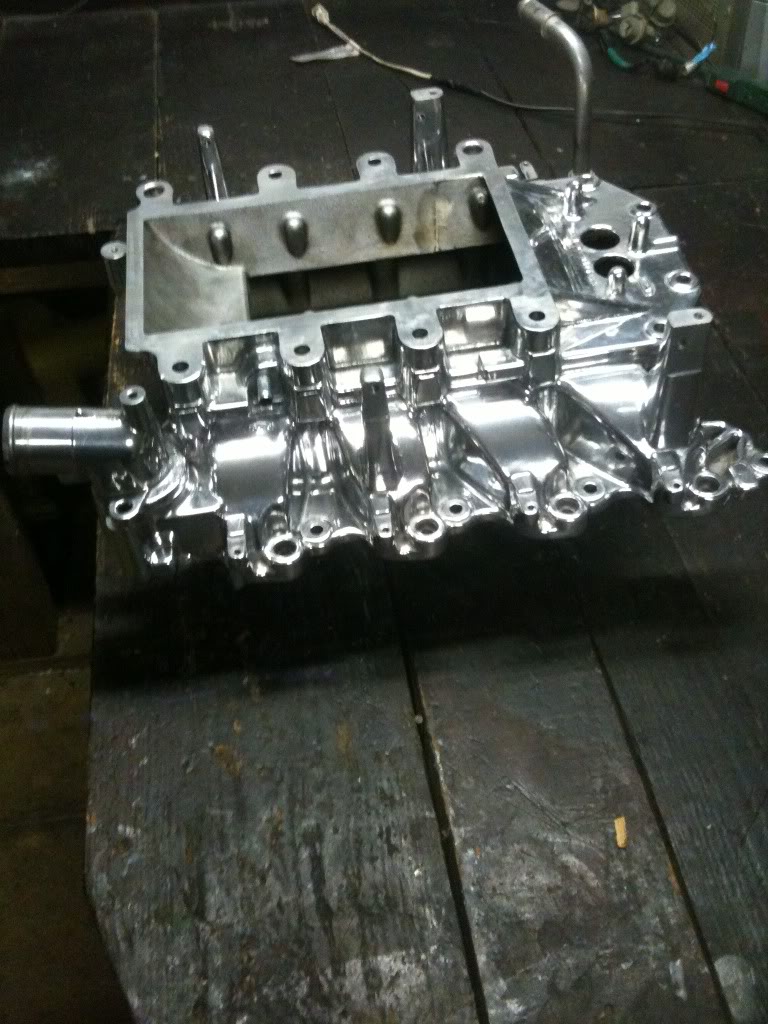

dam!!!!!!!!!!!!!!!! she be beautiful....
seriously... good fuggin work man. Well done.

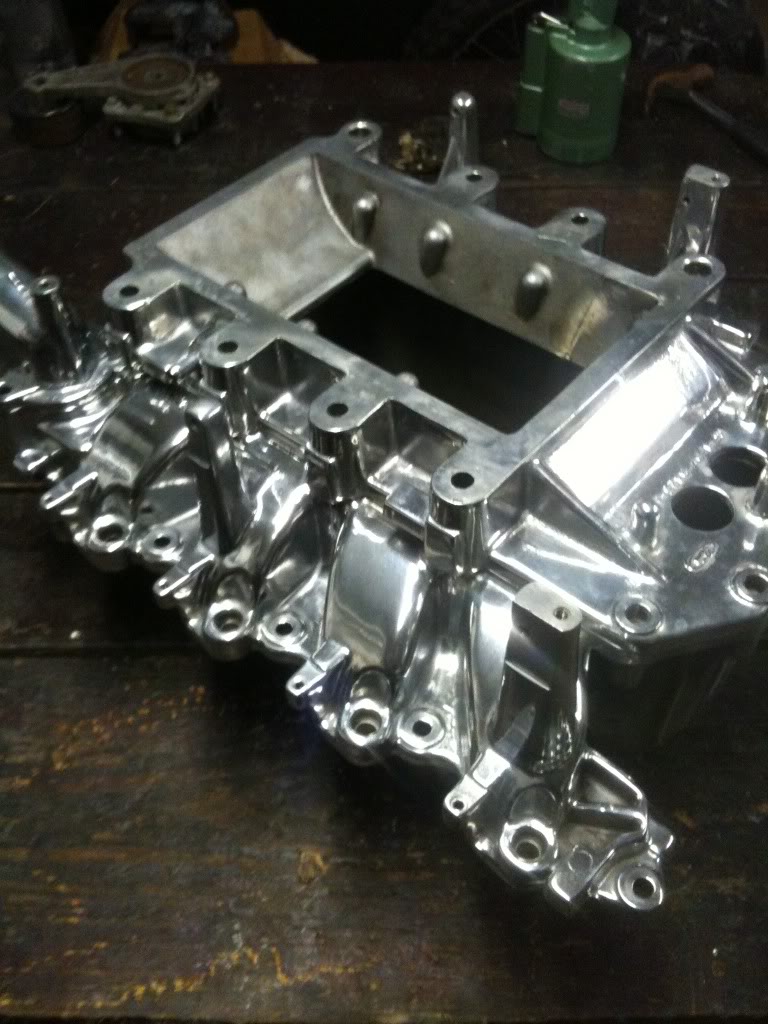

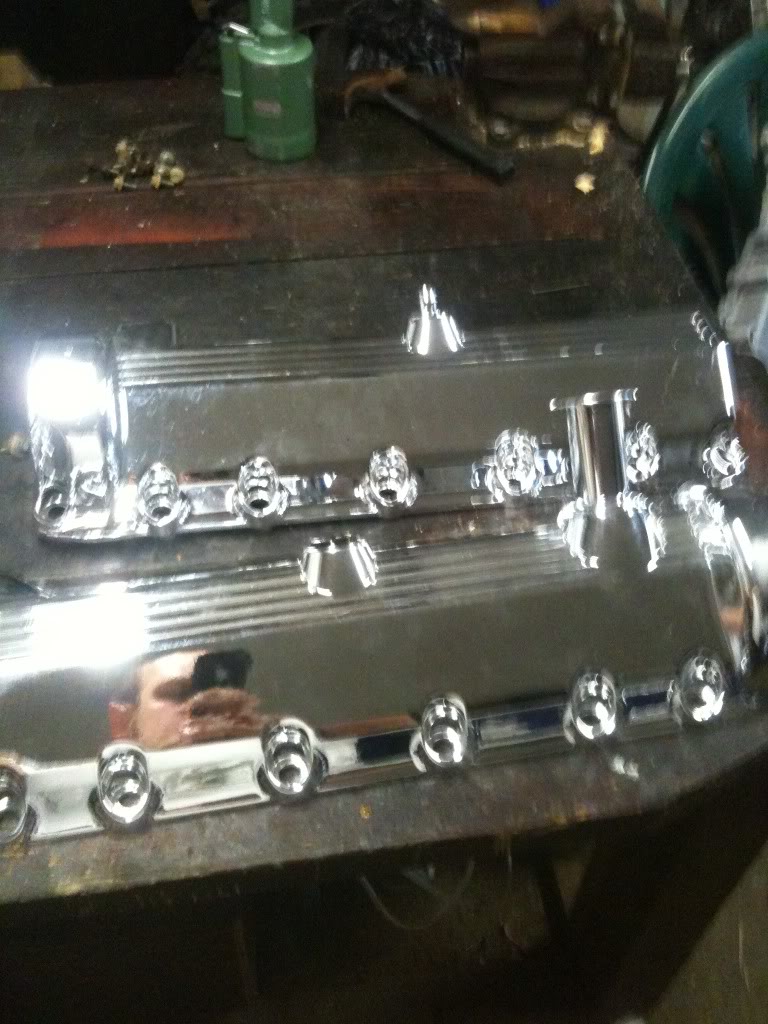

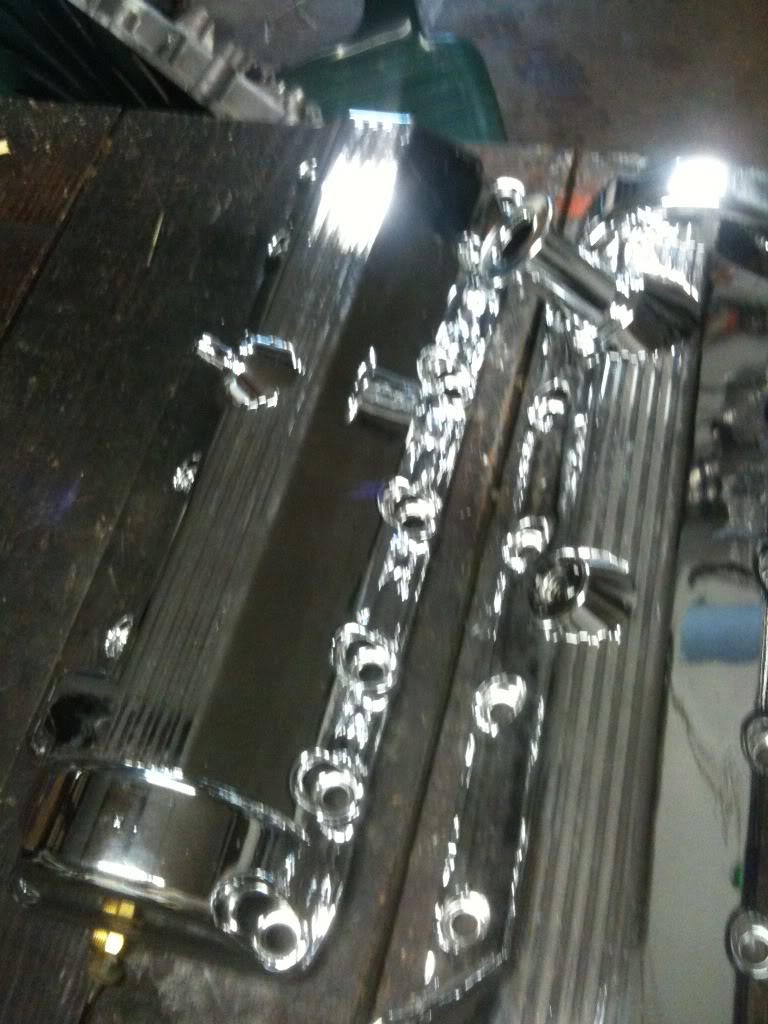

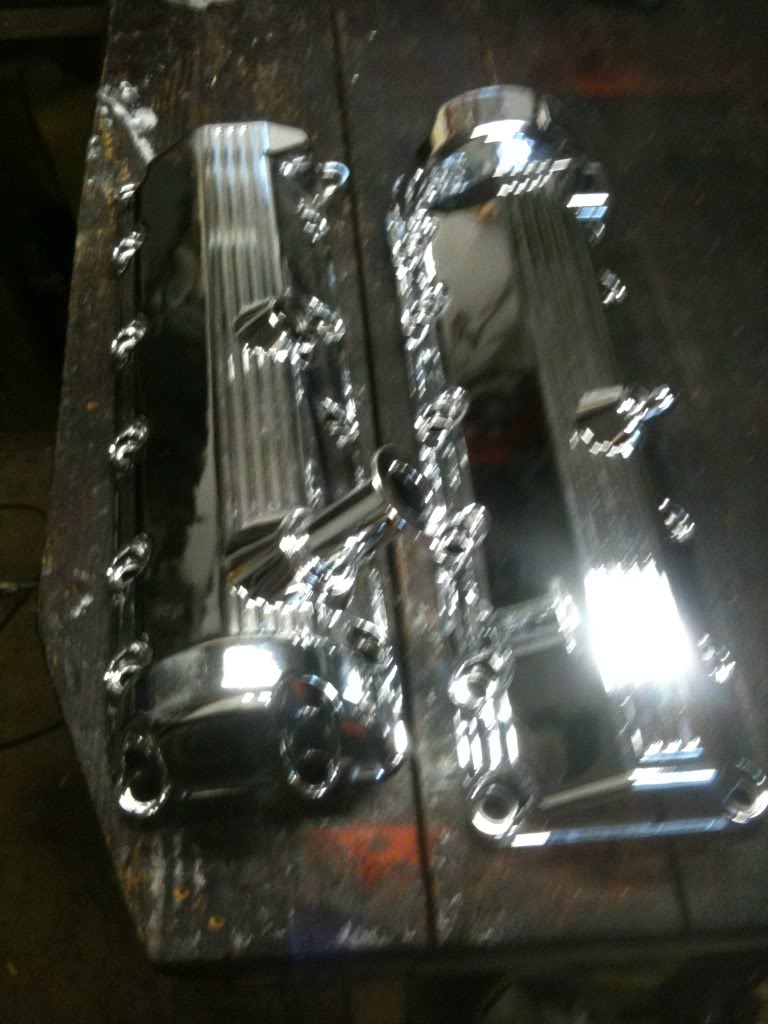

A note about polished parts, they shed heat really unevenly. Not a huge concern but a note.
__________________
Built 5.5L 2v and Maximum Motorsports Max Grip box. www.squarerootofone.com
Just thought I would show off what just arrived in the mail...

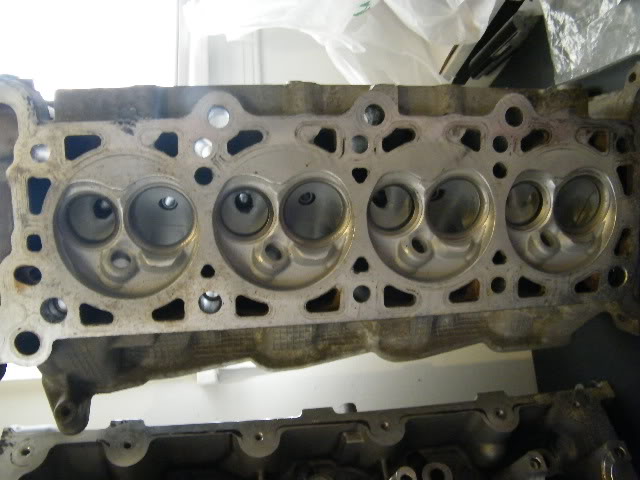

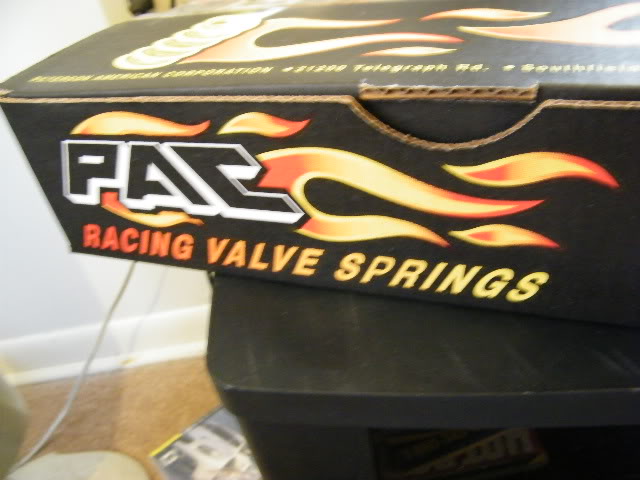

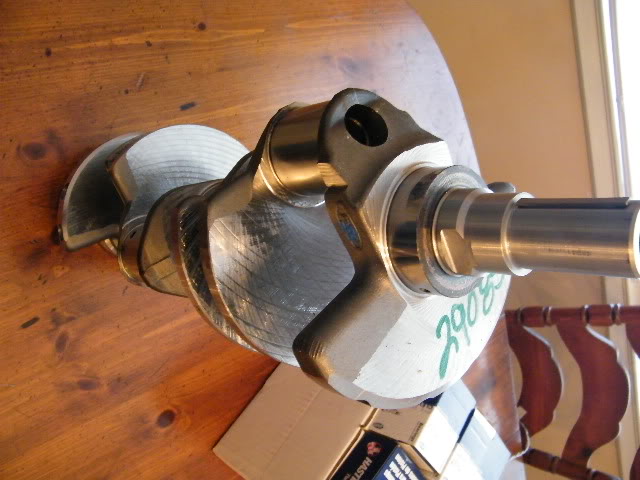

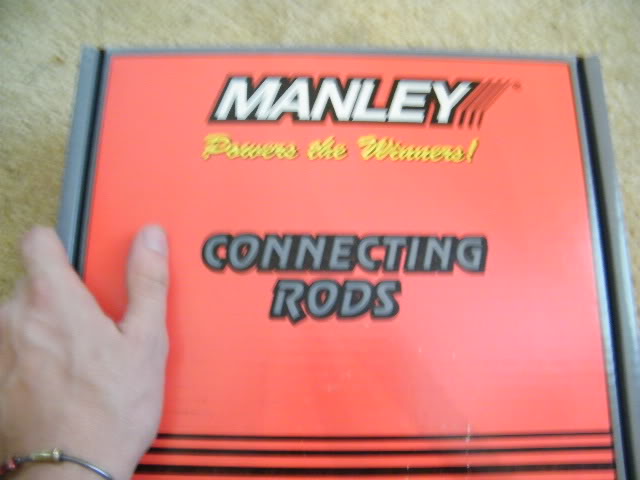

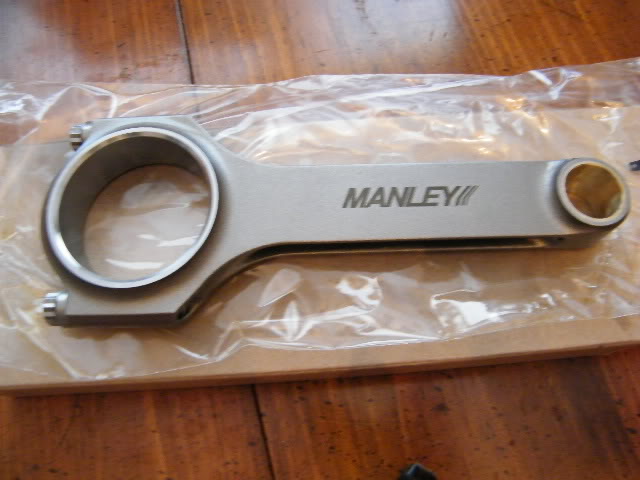

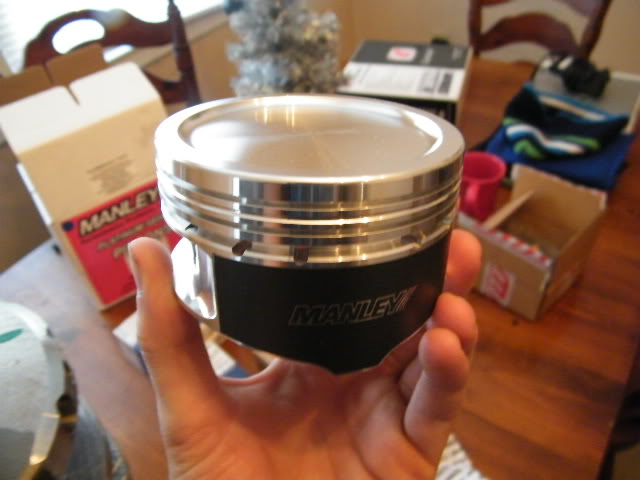

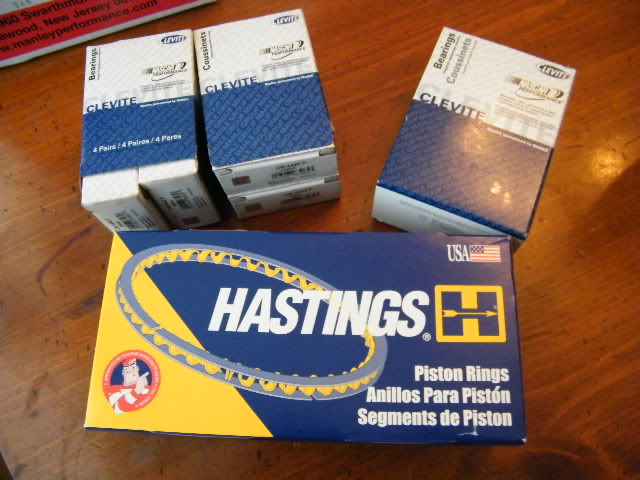

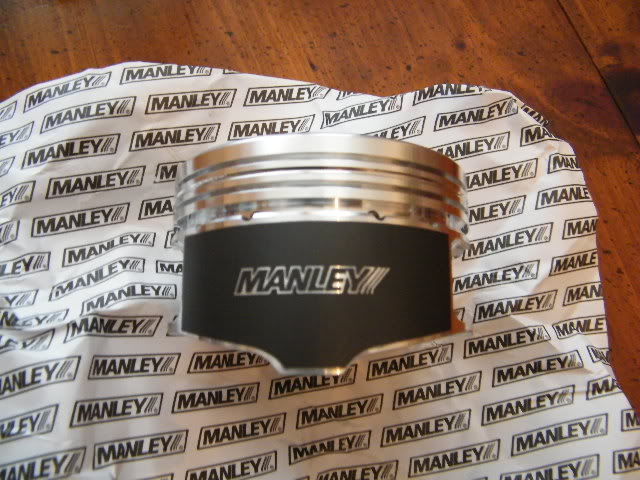

Full MMR 900 rotating assembly. showing off the heads/top end parts as well.
Got the intake from tommy, some more odds and ends and ill be set to put this baby together!
NICE NUMBERS !!!
Merry Christmas - Happy New Year Folks !!!
